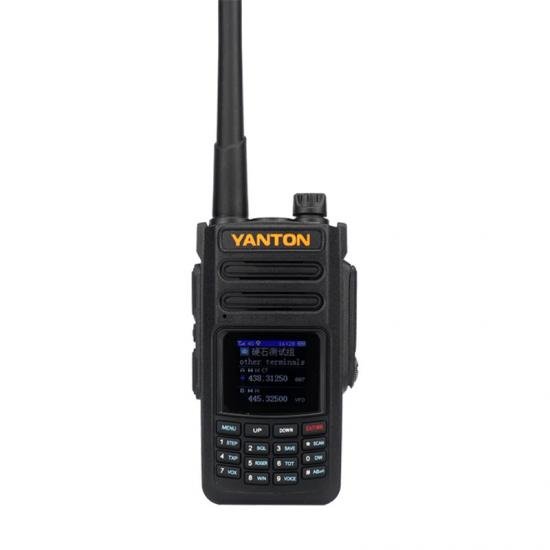

Yanton TX7D VHF
Original price was: ₱10,000.00.₱8,000.00Current price is: ₱8,000.00.
Quick Details
- Individual Call /Group Call/All Call
Output Power:5W - VHF136-174MHZ/UHF400-480MHZ
Built-in 50 set of CTCSS and 105 set of DCS
ANI
Double PTT
Friendly Interface Displays The Calling Information
12V/24V Input Intelligent Charger - GPS Function
- SOS Function
- Repeater Function
Description
Poc Radio T-X7D Cellphone 200 Km LTE Walkie Talkie With Sim Card
T-X7 4G cellphone VHF UHF dual mode radio is a new generation of POC radio that realized the POC and analog switch, POC to analog in repeater function,save the traffic date if communcation distance enough in analog mode, double PTT is convenient to easy communction.
Quick Details
Individual Call /Group Call/All Call
Output Power:5W
VHF136-174MHZ/UHF400-480MHZ
Built-in 50 set of CTCSS and 105 set of DCS
ANI
Double PTT
Friendly Interface Displays The Calling Information
12V/24V Input Intelligent Charger
GPS Function
SOS Function
Repeater Function
Specification
| GENERAL | |
| (U)SIM/SIMU | Standard SIM card interface 3V SIM card and 1.8V SIM card |
| Operating Temperature | -30℃ to +75℃ |
| UMTS Band | HSDPA/WCDMA:2100/1900/850(900)MHz |
| Average current | About 540mA@UMTS 2100 About 239mA@GSM 900 |
| Operation current | About 0.6A |
| Working voltage | DC 7.4V |
| Standby current | About 5mA@UMTS About 5mA@GSM |
| Dimensions | 102mm*58mm*34mm |
| Weight | About 194g |
| TRANSMIT PART | |
| RF power | Public network mode:About 2.2uw;
Analog mode:5W. |
| Transceiver power | UMTS2100/1900/900/850:Power Class 3 (+24dBm +2.5/-1.5dBm)
EDGE 850MHz/900MHz: Power Class E2 (+27dBm +4.5/-1.5dBm) EDGE 1800MHz/1900MHz: Power Class E2 (+26dBm +4.5/-2.5dBm) |
| UART Interface | 8-wires UART |
| RECEIVER | |
| Receiving Sensitivty | WCDMA2100: ≤-108dBm
WCDMA1900: ≤-109dBm WCDMA900 : ≤-109dBm WCDMA850:≤-109 dBm |
