Sale!
Yanton TX2
Original price was: ₱10,000.00.₱8,000.00Current price is: ₱8,000.00.
Quick Details
- Support 4G network
- Support Group Call, Single Call , Friendly Call, Emergency Call
- Mini Design
- RTOS System
Description

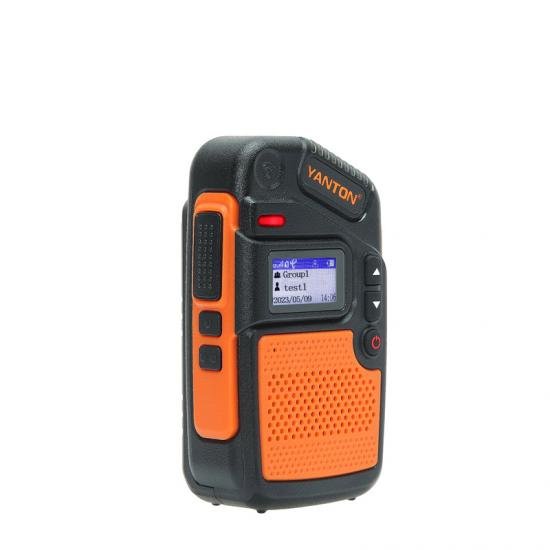

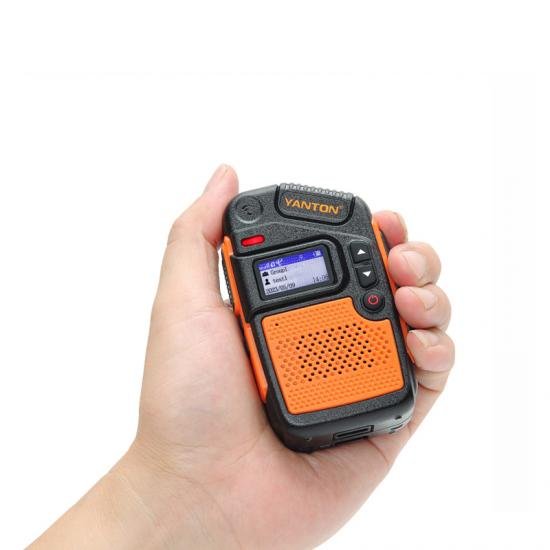

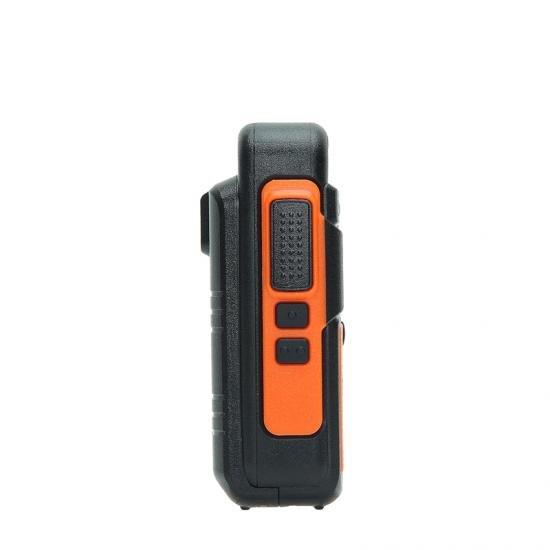

Mini PoC 4G Global Network Two-Way Transceiver Radio
This Mini PoC Radio Solve the traditional communication distance issue , which delivers more flexibility and convenience. W7 is suitable all kind of networks.
Quick Details
Support 4G network
Support Group Call, Single Call , Friendly Call, Emergency Call
Mini Design
RTOS System
GPS(optional)
Specification
| General | Dimensions (H*W*D) | 91mm*62mm*32mm |
| Weight(Includes battery) | ≈37G | |
| Working temperature | -30℃~+75℃ | |
| Operating Voltage | DC3.3V-4.2V(Recommended value 3.8V) | |
| Working current | Peak current ≈0.6A | |
| Average current | ≈540mA@UMTS2100:≈239mA@GSM900 | |
| Stand-by current | ≈5mA@UMTS:≈5mA@GSM | |
| Battery Capacity | 800Mah | |
| Charger mode | Type-c | |
| Baseband | (U) SIM/SIMU | Standard SIM Card Slot: Support 3VSIM Card and 1.8VSIM Card |
| UART Connector | 8 pins UART | |
| Maximum power consumption | ≈ 2.2uw | |
| Frequency | LTE Frequency Band | Asia/ Europe/Africa:
TDD:B1/2/3/4/5/7/8/20/28 FDD:34/38/39/40/41 South America: FDD B1/2/3/4/5/7/8/12/13/17; TDD 34/38/39/40/41; |
| TX Power | LTE: +22dBm (3GPP TS 36.101 R9 Class 3) | |
| RX Sensitivity | LTE: +22dBm (3GPP TS 36.101 R9 Class 3) |
